The L4s-80 Potting Laser Distance Sensor utilizes phase-shift laser ranging technology, one of the most accurate measurement methods for short- and medium-range distance sensing. By analyzing the phase difference between emitted and reflected continuous-wave laser signals, the sensor achieves millimeter-level accuracy and excellent repeatability.
This model features a fully potting-filled structure, significantly enhancing resistance to vibration, moisture, and dust. With an IP67 protection rating, it is well suited for industrial environments where standard sensors may fail.
The RS232 interface provides stable and reliable data transmission, with configurable baud rates and support for Modbus RTU, making integration into PLCs and industrial control systems straightforward. The L4s-80 is optimized for indoor and controlled environments; for long-distance or outdoor applications, the use of a reflective target is recommended.
Specifications
| Item | Specification |
|---|---|
| Measurement Principle | Phase-Shift Laser Distance Measurement |
| Measuring Range | 0.03–80 m (reflector recommended for long range) |
| Resolution | 1 mm |
| Accuracy | ±(1.5 mm + D × 5‰), factory calibrated, typical ±1 mm |
| Repeatability | ±1 mm |
| Sampling Rate | 10 Hz / 20 Hz (default 20 Hz) |
| Laser Wavelength | 650 nm |
| Optical Power | < 1 mW |
| Laser Type | Visible red dot laser |
| Spot Size | < 5 mm @ 10 m |
| Laser Lifetime | Approx. 20,000 hours |
| Power Supply | DC 5 V |
| Power Consumption | 0.5 W @ 20 Hz; standby < 0.2 W |
| System Startup Time | 600 ms |
| Communication Interface | RS232 |
| Baud Rate | 9600 / 19200 / 38400 / 115200 (default 38400) |
| Serial Format | 8 data bits, 1 stop bit, no parity, no flow control |
| Communication Protocols | Modbus RTU / ASCII / Custom Hex |
| Reference Point | Front reference |
| Operating Temperature | –10 °C to +50 °C |
| Operating Humidity | ≤ RH 85% |
| Protection Level | IP67 |
| Cable Type | Aviation cable |
| Dimensions | 100 × 60 × 21 mm (angled connector) / 125 × 60 × 21 mm (straight connector) |
Applications
- Industrial automation and control systems
- Equipment position monitoring
- Displacement and distance feedback control
- Machine alignment and calibration
- Harsh-environment measurement (vibration, moisture)
- OEM laser ranging systems
- Fixed installation industrial measurement
No specification information available.
No attribute information available.
Powering Success: Bringing Client Innovations to Reality
Below are excellent examples for our VIP customers. They have been tested, verified, and widely applied to application systems for years with huge volumes by our VIP customers. If you have a demand for antenna OEM/ODM service, no matter if it is big or small, please feel free to send us a message. We have the experience, capability, and R&D resources to make any OEM/ODM integration a glowing success!
Unrelated Application Field Articles
All Files
| Title | Upload Date | File Type | Action |
|---|---|---|---|
| MyAntennaRF_USB-to-TTL_RS232_Interface-Converter_User-Guide_v1.0_2024-03-12_EN-CN | 2026-01-05 | N/A | Download |
| MyAntennaRF_USB-to-TTL_RS232_Interface-Converter_User-Guide_v1.0_2024-03-12_EN-CN | 2026-01-05 | N/A | Download |
| Laser Distance Sensor Catalogue 2025 -MyAntenna | 2025-12-26 | N/A | Download |
| L4 Series Lser Distance Sensor User Manual 250220 | 2025-12-26 | N/A | Download |

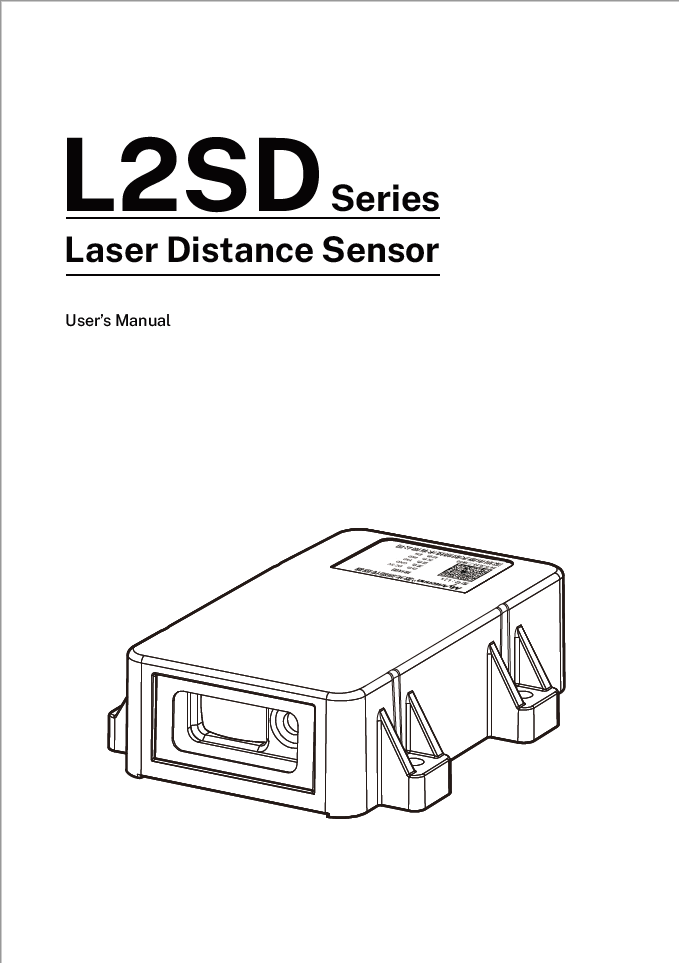

| L2 Series Lser Daistance Sensor User Manual 250325 | 2025-12-26 | N/A | Download |
